The BAR Project (Balanced Automated Robot) - Episode 2

Playing around with the robot. Electronic components and first real life testing

2 Nalys engineers Michiel & Jonas,  decided to build a complete Balanced Automated Robot from scratch. Based on Segway technology, the purpose is to design a robot capable of staying balanced with only 2 wheels. This internal project is a good occasion for them to learn new skills. It will be re-used for training sessions and presented to the Nalys Expertise Communities.

Here comes what we did lately on the BAR project:

• Select the appropriate material for the chassis
• Setting up the laser cutting machine to create our chassis

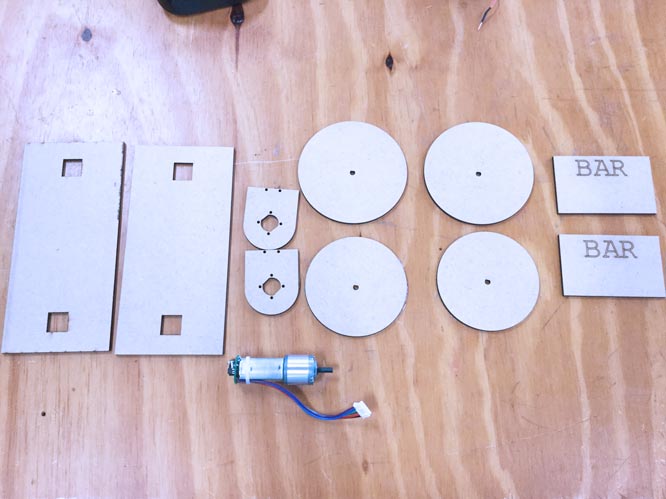

• Realisation of the first prototype (in wood)
• Confirmation of the basic control strategy based on the accelerometer measurements

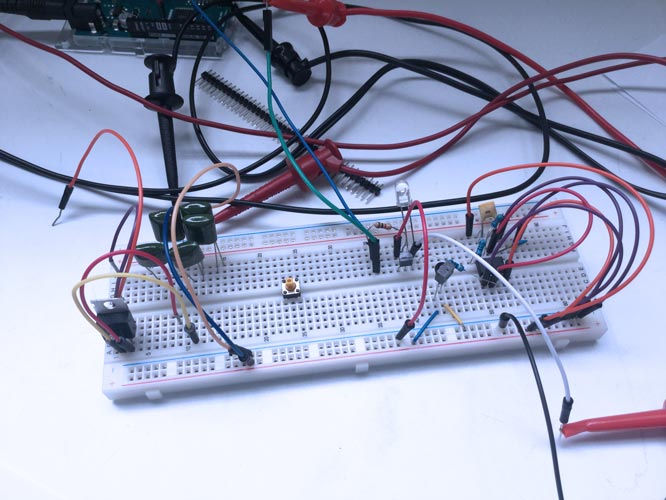

• Preparation of a PCB prototype to interface all electrical components
• Assembly of the first prototype with mechanical and electrical components and check the basic functionalities
• And first real life tests
